infitx NetGuard-D
Close-Range Counter-UAS Protection System
infitx NetGuard-D is a close-range counter-UAS system designed for high-risk environments, providing rapid and controllable physical mitigation against low-altitude drones that have already entered critical proximity.
Key Advantages
- Independent of electronic warfare or signal disruption
- One-step activation with rapid response
- Physical interdiction with predictable outcomes
- Lightweight design suitable for mobile deployment
- No pyrotechnics, no high-pressure gas, no combustion
Application Scenarios
Close-Range Protection in High-Risk Environments
When low-altitude drone threats emerge with minimal reaction time, conventional electronic countermeasures may be insufficient.
Powered by electromagnetic launch technology, this system enables rapid deployment, repeated use, and effective interception of drones — including fiber-optic controlled platforms — providing reliable close-range protection for critical assets.
contact us
Controlled Area Drone Mitigation
In regulated areas, surveillance drones or unauthorized aerial intrusions can pose immediate security concerns.
With a lightweight and rapidly deployable design, this system provides controlled physical interception of low-altitude drones, supporting law enforcement and security operations in patrol, response, and temporary control scenarios.
contact us

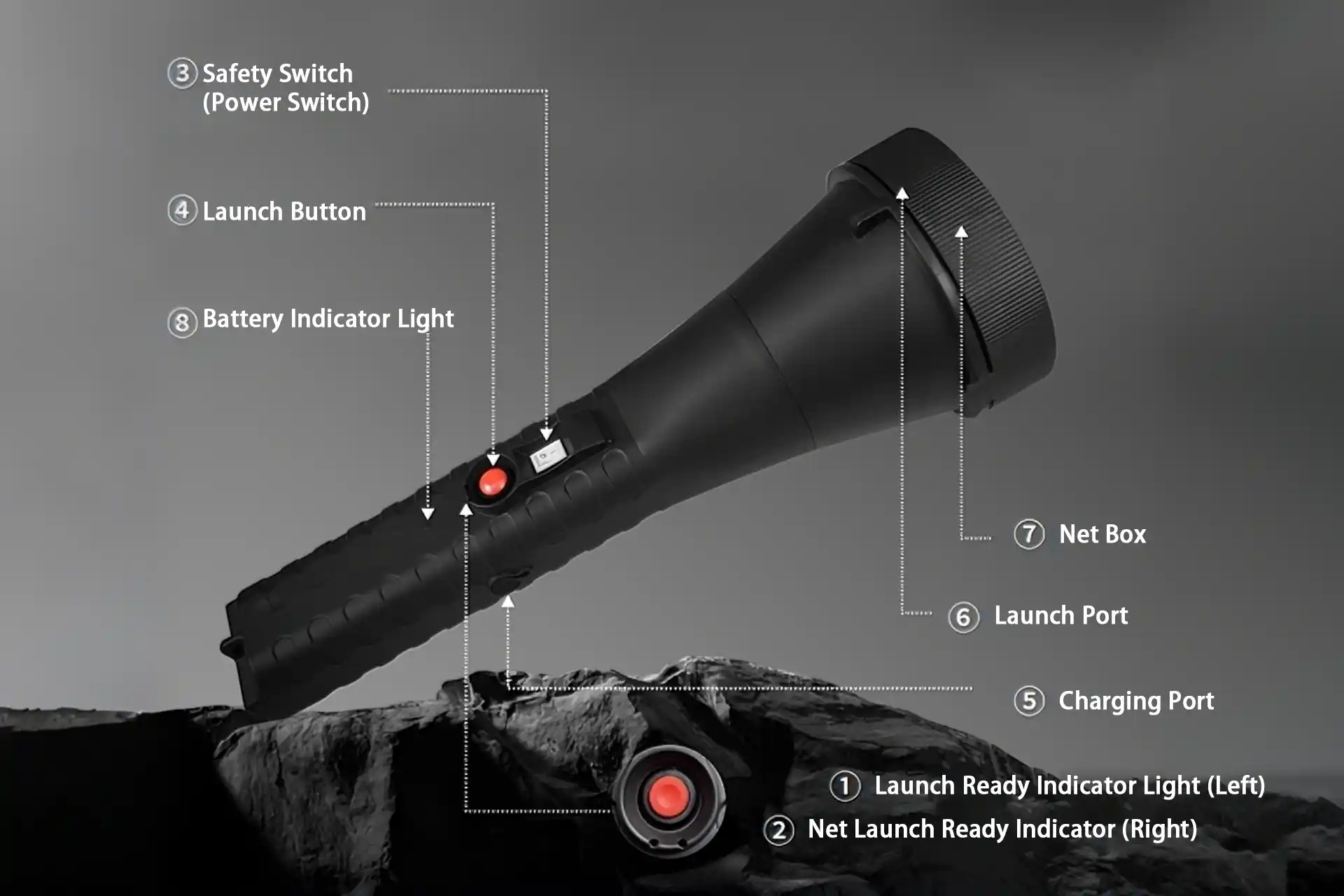

Product Specifications
| Product Name | Electromagnetic Net Launcher |
| Model | JC-NG-03 |

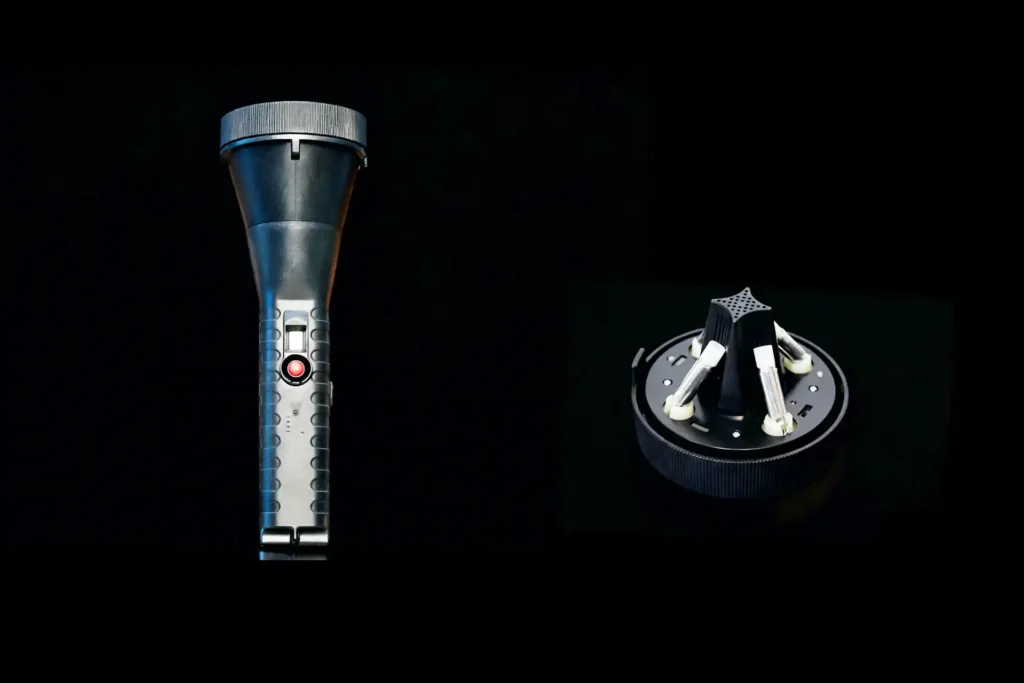

| Components | Launcher main unit, net cartridge, capture net, baffle plate, etc. |
| Weight | ≤1.25 kg |
| Number of Tether Heads | 4 |
| Tether Head Material | Silicone-coated iron core material |
| Mesh Size | 15 cm × 15 cm |
| Effective Capture Range | 5 m – 10 m |
| Capture Net Area | 2.4 m × 2.4 m |
| Safety | The launcher is equipped with a built-in safety locking mechanism. When the safety mode is activated, the firing mechanism cannot be triggered, effectively preventing accidental discharge caused by misuse and ensuring the safety of operators and the surrounding environment. |
| Consumables | The tether heads and capture net are recyclable and reusable |
| Power Source | The device is powered by a rechargeable battery, which also serves as the energy source for launching. When fully charged, it supports at least 50 consecutive launches, ensuring operational continuity and high efficiency. |
| Battery Capacity | 2500 mAh, rechargeable |
